CAS-2150SP

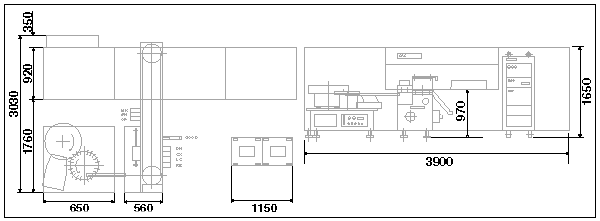

cas-2150spdraw

SPECIFICATION
   CAS-2150SP Specifications
ITEM Standard Specification
  CAPACITOR SIZES

Diameter
Length

Φ4 - Φ6.3

5 - 7mm

Φ5 - Φ8

7 - 13mm

Φ8 - Φ10

7 - 13mm
+CP Lead : 20-30mm -CP Lead : 15-25mm
* +,- Lead Deflection : More than 5mm
  AGING TIME   60(Measure)/ 90/ 120/ 150/ 180 min
  PRODUCTION RATE   85pcs/min (Inverter Control)
  AGING TEMPERATURE   85-150°C ± 5°C
  AGING POWER SUPPLY   DC1 ~ 50V (5A, 5A, 3A, 3A, 3A, 3A)
  JIG RESISTANCE   100Ω  / 160°
  JIG QUANTITY   240pcs
  TEST ITEM

OP-SH : DC1V - 50V Free Setting
LC : 4µA/ 40µA/ 400µA/ 4mA - 4Ranges
CX : 0.2㎌/ 2㎌/ 20㎌/ 200㎌/ 2mF/ 20mF - 6Ranges
DX : 0.1% - 99.9% (50Hz or 60Hz)
ESR : 1mΩ ~ 100MΩ (20Hz ~ 100KHz)
  SORTING PROGRAM   GOOD, OP, SH, LC, CX, DX, ESR, TOTAL
  ADDITIONAL FUNCTION

1Lead Straightening
2)Polarity Alignment
3)Lot Change
4)JIG Inspection
5)Sub Start Switch
6)1000H Timer (Heating)
7)Manual Measurement of LC, CX and DX
8)Polarity Reverse Check
  AIR REQUIREMENT

4.5Kgf/cm2 50ℓ/min
  POWER SUPPLY   1)Driving Unit : AC 220V ± 20V 3Phases 24KW 50Hz or 60Hz
2)Testing Unit : AC 110V ± 10V 1Phase 2.5KW 50Hz or 60Hz
  MACHINE DIMENSION   3900(W) x 2600(D) x 1650(H) W=2500Kg
  OPTIONAL FUNCTION

① Lifter Type Hopper
② Aging Power Supply DC1~50V (10A, 10A, 10A, 6A, 6A, 6A)
③ ESR meter (JK-1040 or JK-1051)
④ ESR meter print buffer system
⑤ CAPACITOR meter PC communication software



INTRODUCTION

This machine is for single-ended electrolytic-capacitors. Feeding, loading, aging, testing and sorting are done fully automatically. Applicable capacitor sizes are Φ4 through Φ10. The sorting speed is 0.7sec. per piece and can be used in combination with a taping machine.
